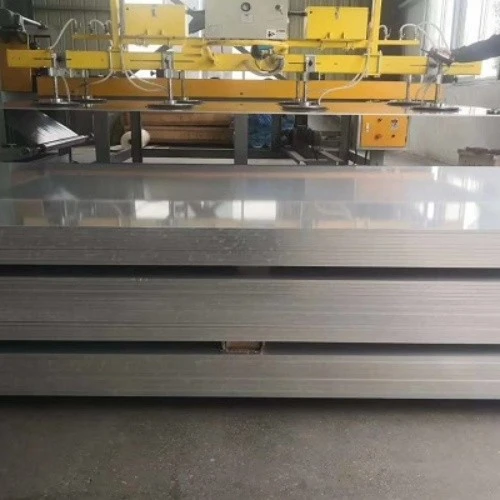

EN AW 1050A H12 Aluminium Sheet



EN AW 1050A H12 txhuas ntawv yog cov khoom lag luam ntshiab aluminium alloy (99.5% cov ntsiab lus txhuas yam tsawg kawg nkaus) paub txog nws cov corrosion kuj zoo heev, zoo formability, siab ductility, thiab du nto.

Qhov no tsis yog - cua sov- kho tau alloy muaj qhov sib npaug ntawm lub zog nruab nrab thiab kev ua haujlwm tshwj xeeb, ua rau nws yog qhov kev xaiv zoo rau cov ntawv thov uas cov khoom no tseem ceeb heev. Los ntawm cov khoom siv hluav taws xob mus rau cov vaj huam sib luag zoo nkauj, 1050A txhuas ntawv muab kev ua tau zoo thiab tus nqi - daws tau zoo.



EN AW 1050A H12 Aluminium Sheet Specifications



Cov lus no qhia txog cov qauv kev qhia tshwj xeeb rau cov khoom, suav nrog qhov ntev thiab kev tsim muaj peev xwm.

Yam khoom	Paub meej
Txuj	EN 573 / EN 485
Alloy	EN AW 1050A
Kub	H12 (Hardened, 1/4 Hard)
Thickness Ntau	0.2mm - 10mm (Kev ntsuas ntsuas muaj)
Dav Ntau	500mm-2000 hli
Ntev Ntau	500mm-6000mm
Nto tiav	Mill tiav, ci, txhuam, iav -zoo li
Txheej txheej xaiv	PVC coated (tiv thaiv zaj duab xis), xim coated (ntau xim RAL)
Cov Khoom Muag Khoom	Daim ntawv, coil, strip, kev cai duab





Chemical Composition ntawm EN AW 1050A Aluminium Sheet



Cov khoom ntawm 1050A yog tsav los ntawm nws cov purity. Ntawm no yog cov tshuaj pleev ib ce:

Element	Cov ntsiab lus (%)
Aluminium (Al)	Ntau dua lossis sib npaug rau 99.5
Hlau (Fe)	Tsawg dua los yog sib npaug li 0.40
Silicon (Si)	Tsawg dua los yog sib npaug li 0.25
Copper (Cu)	Tsawg dua los yog sib npaug li 0.05
Manganese (Mn)	Tsawg dua los yog sib npaug li 0.05
Zinc (Zn)	Tsawg dua los yog sib npaug li 0.07
Lwm Yam Khoom (txhua)	Tsawg dua los yog sib npaug li 0.03
Lwm Yam Khoom (tag nrho)	Tsawg dua los yog sib npaug li 0.15



Mechanical Properties ntawm 1050A H12 Aluminium Sheet



H12 temper muab qhov sib npaug ntawm lub zog thiab formability. Cov no yog cov nqi ib txwm:

Khoom	Tus nqi
Tensile zog	95-125 MPa
Yield zog	Ntau dua lossis sib npaug li 65 MPa
Elongation (% hauv 50 mm)	Ntau dua lossis sib npaug li 10%
Hardness (Brinell)	~ 30 HB



Cov yam ntxwv tseem ceeb ntawm 1050A H12 Aluminium Sheet



Cov alloy no muaj kev sib xyaw ua ke ntawm cov txiaj ntsig zoo:

• Zoo heev Corrosion Resistance: Zoo tagnrho rau cov ntawv thov raug ya raws, tshuaj lom neeg, lossis cov khoom sab nraum zoov. Nws tsis xeb.
• High Formability thiab Ductility: Yooj yim khoov, stamped, thiab zoo li tus yam tsis muaj cracking. Haum rau kev kos duab sib sib zog nqus thiab cov ntaub ntawv nyuaj.
• Zoo Thermal thiab Hluav Taws Xob Conductivity: Ua tau zoo rau cov dab dej kub, cov khoom siv hluav taws xob, thiab lwm yam kev siv uas yuav tsum tau hloov cov cua sov kom zoo.
• Smooth Surface Finish: Haum rau anodizing, pleev xim, thiab lwm yam kev kho deg.
• Yooj yim rau txheej txheem thiab Fabricate: Yooj yim txiav, welded, thiab koom nrog siv cov txheej txheem ntau.



Daim ntawv thov ntawm 1050A Aluminium Sheet

Vim nws cov khoom, 1050A txhuas ntawv yog dav siv nyob rau hauv ntau industries:

• Hluav taws xob thiab cov khoom siv hluav taws xob: Busbars, cov dab dej kub, thiab cov khoom siv hluav taws xob uas nws cov conductivity thiab corrosion kuj tseem ceeb heev.
• Chemical Equipment: Cia tank, ntim, thiab kav dej rau tej yam tshuaj vim nws tsis kam mus corrosion.
• Cov Khoom Siv Khoom Noj Khoom Haus: Cov khoom siv ua zaub mov, cov kaus poom dej haus, thiab cov ntawv ntim.
• Reflectors thiab Teeb pom kev zoo: Reflectors rau cov teeb thiab teeb pom kev zoo uas nws qhov kev cuam tshuam thiab kev tsim muaj txiaj ntsig zoo.
• Decorative Panels thiab Signage: Anodized los yog pleev xim rau cov hom phiaj zoo nkauj.
• Thaum tshav kub kub Exchangers: Vim nws cov thermal conductivity siab, cov hlau no feem ntau yog tsim rau cov cua kub exchangers hauv HVAC systems.







1050A vs. Lwm yam Aluminium Alloys



Ntawm no yog qhov sib piv ceev los pab koj xaiv cov qib txhuas raug rau koj qhov project.

1050A vs . 3003 Aluminium Sheet
1050A Txhuas: Muab kev ua haujlwm siab thiab ua tau zoo heev. Nws yog qhov zoo tshaj plaws siv rau cov ntawv thov uas tsim thiab nto zoo yog qhov tseem ceeb.
3003 Txhuas: Muaj manganese ntxiv zog. Nws yog qhov dav dav dua - lub hom phiaj alloy thiab yog qhov zoo- haum rau cov ntawv thov me ntsis ntau dua 1050A.
Kev siv zoo tshaj plaws rau: lub hom phiaj dav dav, tso tsheb hlau luam, thiab cov khoom siv tshuaj.

1050A vs . 6061 Aluminium Phaj
1050A Txhuas: Muaj lub zog qis, yog qhov tsim tau zoo, thiab muaj qhov zoo heev. Nws yog qhov zoo tagnrho rau cov khoom uas yuav tsum tau khoov lossis shaping.
6061 Txhuas: Lub tshav kub- kho tau alloy muab qhov sib npaug ntawm lub zog thiab kev ua haujlwm zoo. Txawm hais tias nws tsis muaj qhov zoo sib xws li 1050A, nws yog qhov tsim nyog rau qhov chaw uas yuav tsum muaj kev ntseeg siab dua.
Kev siv zoo tshaj plaws rau: CNC machined qhov chaw, cov qauv txheej txheem, thiab cov khoom siv uas yuav tsum muaj lub zog nruab nrab.

1050A vs . 5052 Aluminium Sheet
1050A Txhuas: Muab cov qauv zoo tshaj plaws thiab ua kom huv si. Yog tias koj tab tom tsim cov duab nyuaj, 1050A feem ntau yog qhov kev xaiv zoo dua.
5052 Aluminium: Muaj magnesium, uas ua rau nws muaj zog thiab tiv taus dej ntsev ntau dua.
Qhov zoo tshaj plaws siv rau: Marine Cheebtsam, roj tso tsheb hlau luam, thiab cov khoom uas raug corrosive ib puag ncig.



Muaj peev xwm muab tau rau 1050A Aluminium Sheet



GNEE tau cog lus tias yuav muab ntau tshaj li cov khoom siv raw. Peb siv zog los ua ib qho kev sib txuas ntawm cov khoom siv sib txuas. Peb muab:

• Customize txiav:Txo cov khib nyiab thiab txuag lub sijhawm. Peb muab kev txiav meej meej rau koj qhov tshwj xeeb qhov ntev rau ob daim ntawv thiab coil khoom.
• MOQ me me thiab kev txiav txim kom muaj nuj nqis:Koj tuaj yeem txiav txim siab tus nqi ntawm txhuas koj xav tau yam tsis tau yuam kom yuav khoom ntau dhau.
• Fast Delivery rau Standard Size:Peb tuav cov khoom lag luam loj ntawm 1050A txhuas ntawv hauv cov ntsuas feem ntau, tso cai rau peb ua tiav cov qauv xaj sai.
• Export Ntim:Peb nkag siab txog cov cai rau kev xa khoom thoob ntiaj teb. Peb tuaj yeem ntim koj 1050A txhuas ntawv ruaj ntseg ntawm cov ntoo pallets nrog ntug kev tiv thaiv thiab kev tiv thaiv ya raws.









Xav tau ib tus neeg muab kev ntseeg siab rau siab -purity 1050A txhuas ntawv? Qhia koj cov lus qhia txog qhov project nrog peb - ​​suav nrog qhov loj me, qhov chaw tiav, thiab cov txheej txheem txheej txheem. Peb muab cov kev daws teeb meem tiav los ntawm lub Hoobkas ncaj qha tus nqi mus rau kev cai ua thiab ceev ceev, xa khoom thoob ntiaj teb.

Tau txais cov lus hais hauv 24 teev
